Full Size Pano-Gimbal Head

SKU: PG-02 Pano-Gimbal Head
1 Review
$670.00 to $891.00

In Stock

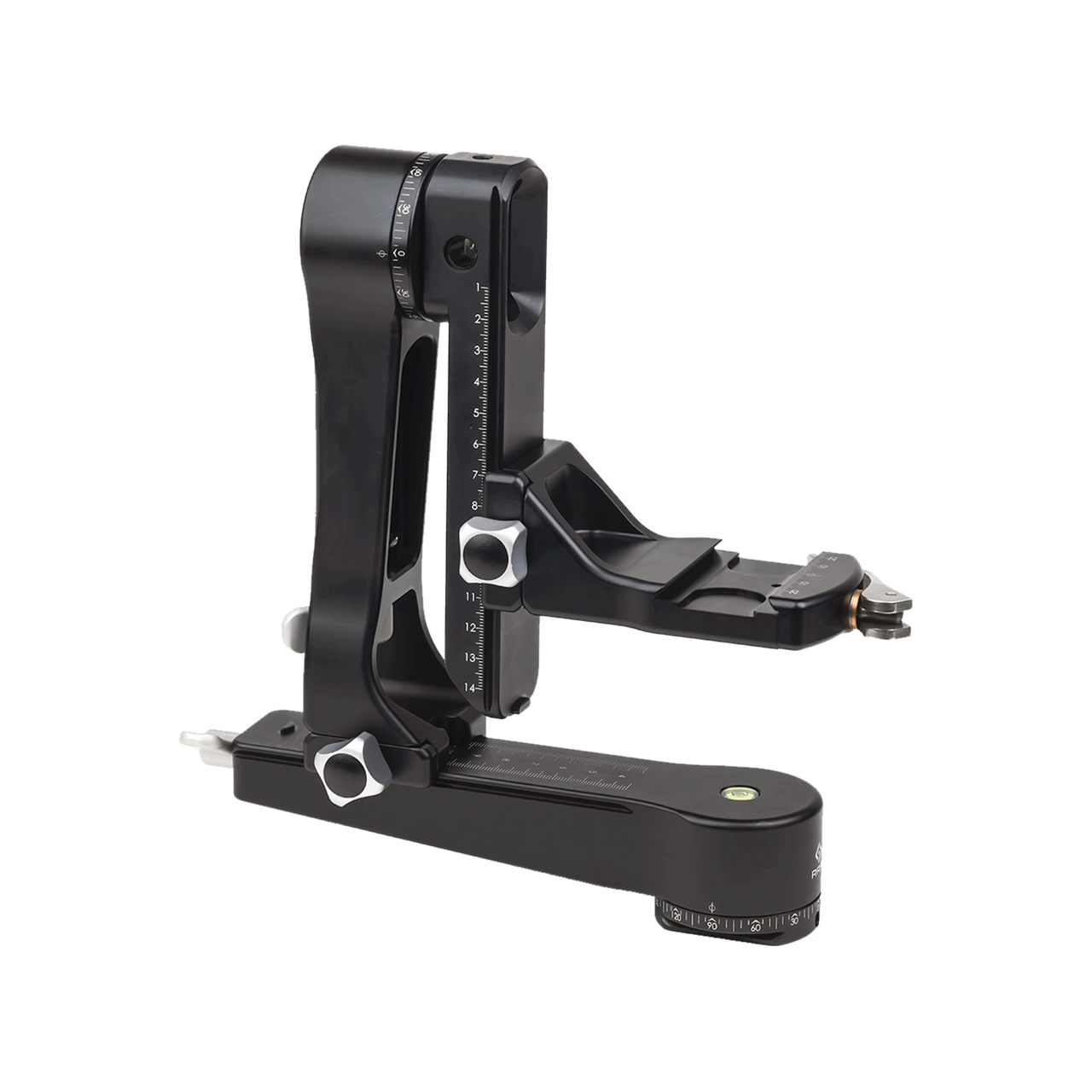

The pano gimbal head (PG-02) by Really Right Stuff is the culmination of countless research, testing, and input from professional photographers. The PG-02 gimbal tripod head allows users to pivot independently on both the vertical and horizontal axes. It's great for handling large lenses and allows the shooter to follow a subject smoothly by providing solid lens support. The PG-02 is the exemplar for shooting panoramas. The independently pivoting axes ensure that each frame of the panorama will be perfectly level and aligned.
The PG-02 head is available with a variety of quick-release clamps
  • PG-02 LLR with B2-LLR-II long style lever-release clamp
  • PG-02 LR with B2-LR-II lever-release clamp
  • Full Gimbal with Cradle Clamp that utilizes a vertical rail to adjust the height of the cradle clamp
  • Patented lever-release clamp for fast & easy mounting
  • Ergonomic design gives superior handling and unsurpassed reliability
  • Precision panning base is finely laser-engraved at 2.5 degree intervals
  • Our unique drum & brake design for effortless locking
  • Laser-engraved millimeter scale offers precise centering and positioning within the clamp jaw
  • CNC Machined aluminum
  • PG-02 Horizontal Base
  • PG-02 Vertical Arm
  • PG-VR Vertical Rail - Only if Full Gimbal is selected
  • PG-CC cradle clamp- Only if Full Gimbal is selected
  • Stainless Steel 1/4"-20 x 3/4", flathead screw
  • 5/32" Hex Key
  • (2) Stainless Steel M5-0.8 x 12mm, flat head screw
  • M3 Hex Key
  • Gimbal Head Carry Case with modular inserts
  • User's Guide
  • Full Gimbal Specs:
  • Load Capacity: 50 lb / 23 kg
  • Height: 3.7" / 94 mm
  • Length: 10.3" / 26.0cm
  • Base Diameter: 2.9" / 73mm
  • Tripod Mount: 3/8"-16
  • Total Weight for PG-02 FG: 3.6 lb / 1627g

  • Horizontal Bar Specs:
  • Height: 1.5" / 38.75mm
  • Panning Base Diameter: 2.75" / 70mm
  • Level: 12mm Bullseye Level
  • Tripod Mount: 3/8"-16
  • Panning Base Laser Engraving: Zero to 360 degrees in 2.5 degrees increments
  • Lateral Scale Laser Engraving: Zero point is middle of panning base, laser engraved from 40mm to 180mm on both sides.
  • Weight: 21.5 oz / 610g

  • Vertical Arm Specs:
  • Height: 8.1" / 206mm
  • Lateral Slide Lock Knob locks the Vertical Arm to the Horizontal Bar
  • Tilt Lock Knob locks the vertical panning
  • Tilt Axle is laser engraved Zero to 360 degrees in 2.5 degrees increments.
  • Tilt Axle includes two pan index marks for positive alignment.
  • Optional Mounting Sockets on top of PG-02 VA allow for mounting of optional accessories. Mount a small ballhead for a second camera, or a microphone when shooting video. (There are 5 optional sockets on top of PG-02 VA)
  • One centered socket threaded 3/8"-16, two 1/4"-20 sockets on the X-axis (25mm apart on center), and two 1/4"-20 sockets on the Y-axis (20mm apart on center).
  • Tilt Axis Mounting Sockets: one 1/4"-20 centered socket with anti-twist tabs, two M5 sockets (30mm apart on center that accept B2 LR II or B2-Pro clamp), two more M5 sockets (45mm apart on center that accept B2 LLR II or B2-Pro/L clamp).
  • Weight: 19 oz / 540g
  • 1 review

    • 4 stars
    • 0 reviews
    • 3 stars
    • 0 reviews
    • 2 stars
    • 0 reviews
    • 1 star
    • 0 reviews

    Ratings & Reviews

    Slight changes - Not backward Compatible

    Model has gone trough changes over the years.<br><br>Older PG-02 Vertical arms will not fit on newer models due to a change in the catch pins design and mounting area of the vertical arm itself.<br><br>So far I've counted 4 different versions:<br><br>Screw Knob (on VA), no pin (on HB)<br>Screw Knob, one pin<br>Lever Knob, one pin<br>Lever Knob, two pin
